Description
These elements are designed to be used in processes where heat transmission must be by radiation, heating wire embedded into flat or concave shaped heater creates infrared in either focused or parallel rays.
Features
▲ Watt densities 3w/cm2
▲ Maximum temperature of 700ºC
▲ Standard voltages are 120v, 220v, 230v, 240v and 480v
▲ Standard wattages range between 150w and 1000w
▲ 5000 - 10,000 hours working life
▲ High purity ceramic insulation and a high mechanical resistance to thermal shock
▲ Pin connectors with ceramic protection
▲ Accessories for simple installation
▲ Available fitted with type "k" thermocouple.

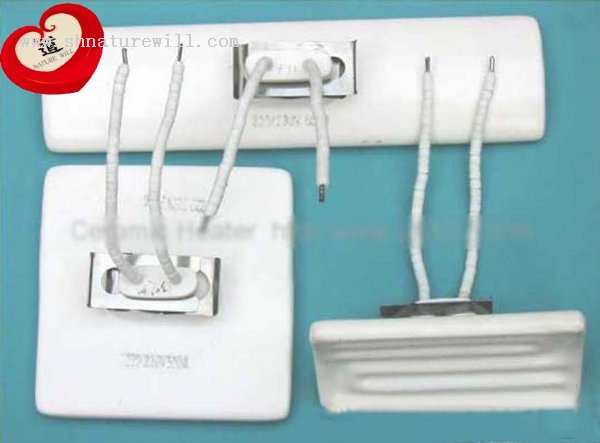

Available Sizes and wattages

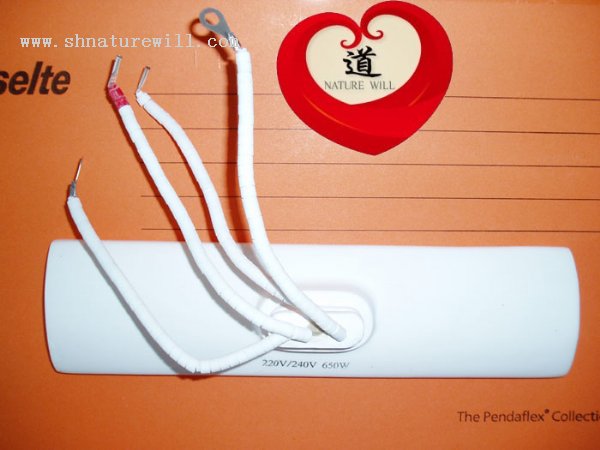

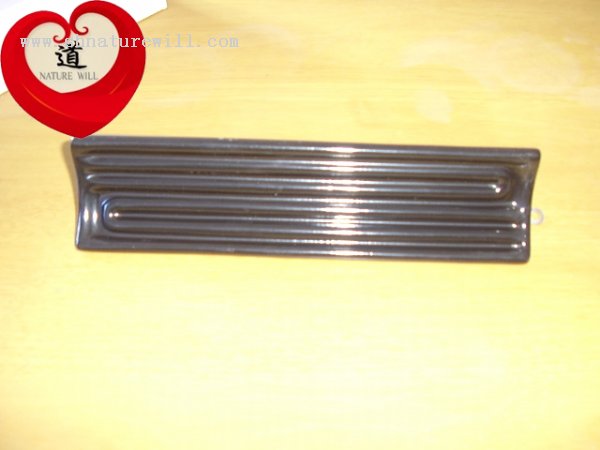

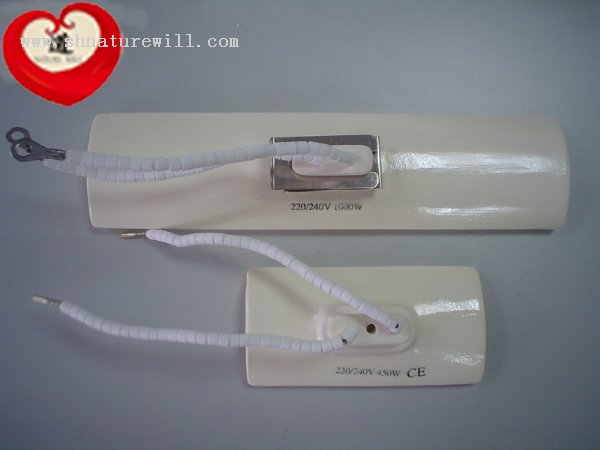

▲ Curved 245 x60mm
Wattages 150, 200, 250, 300, 350, 400, 450, 500, 600, 650, 700, 750, 800, 1000

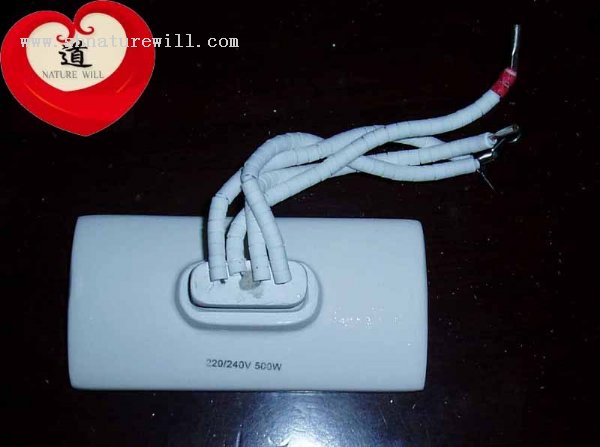

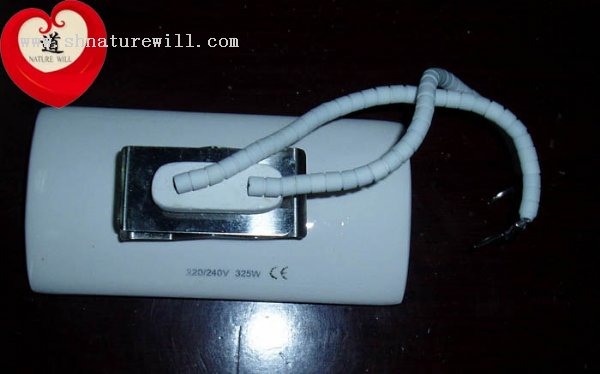

▲ Curved 122 x 60mm
Wattages 125, 150, 200, 250, 300, 325, 375, 400, 450, 500

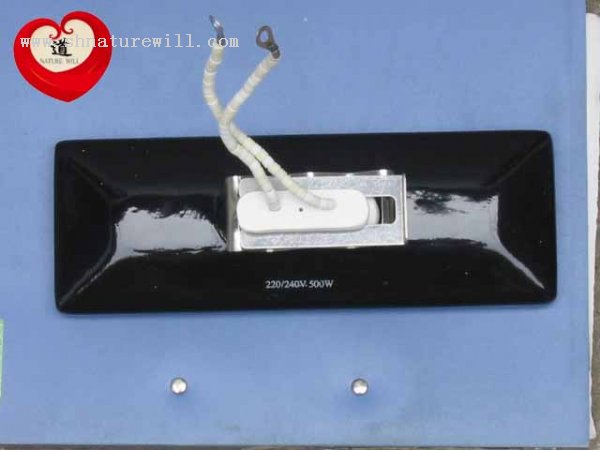

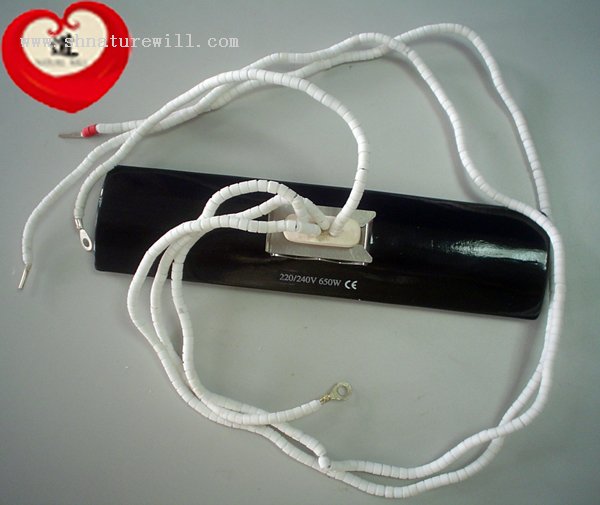

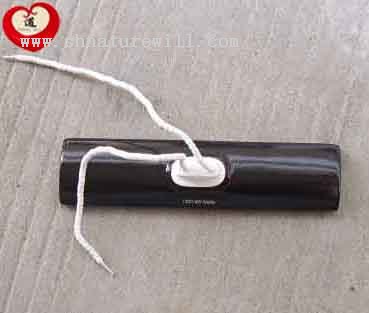

▲ Flat 245 x 60mm
Wattages 150, 200, 250, 300, 350, 400, 450, 500, 600, 650, 700, 750, 800, 1000
▲ Flat 122 x 60mm
Wattages 125, 150, 200, 250, 300, 325, 375, 400, 450, 500
▲ Flat 60 x 60mm
Wattages 100, 125, 150, 200, 250

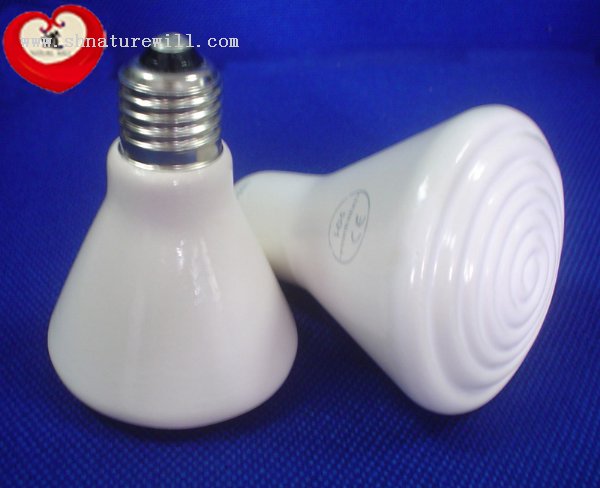

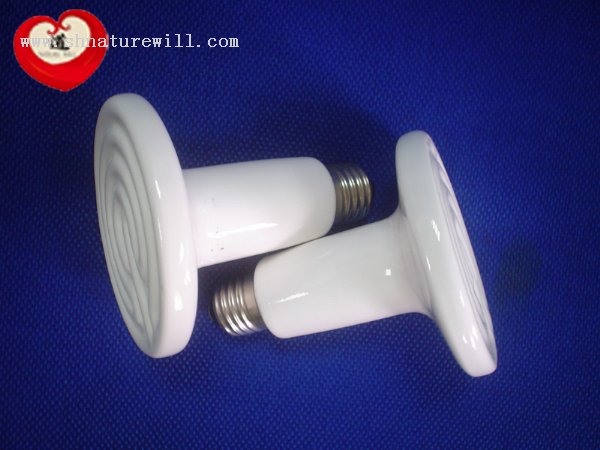

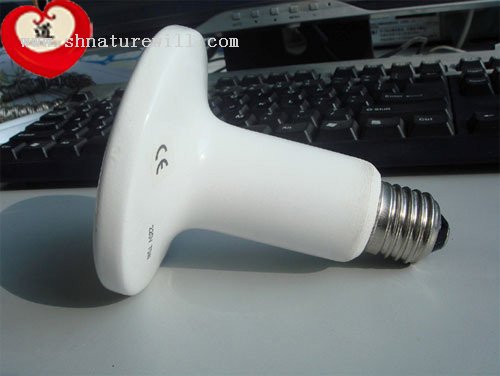

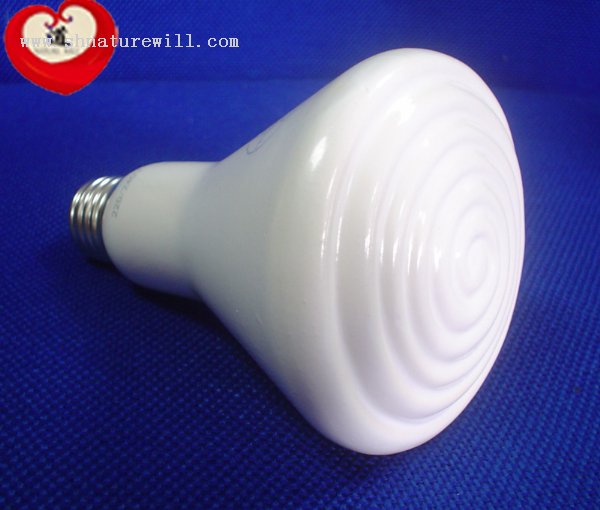

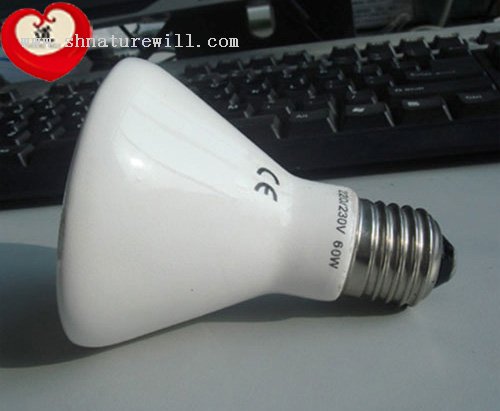

Dia. 95mm height 120mm, 220v 250w, terminal end E27
Application
Infra-red heaters range from thermoforming machines to ovens for drying glued wood and furniture parts, drying of inks, paints and glazes, pre-heating in packing machines etc.
|
