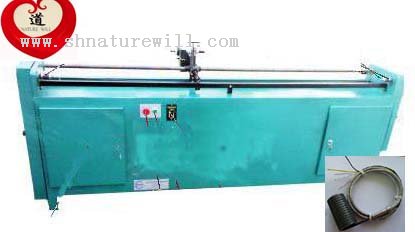

winding machine

Suit for the heater tube diameter 1.8-3.8mm,

Because the coil heater tube is normally very thin, the magnesia bar being used for winding resistance wire is very thin.

Power & Voltage: 230-240V 0.5KW

Main functions:

A. can wind resistance wire on magnesia bar diameter 0.2-1mm

B. the length of winding resistance wire max.1000mm

C. can pre-establish winding turns in advance.

D. can wind two parallel resistance wire on one magnesia bar at the same.

E. can adjust the winding space between resistance wires freely

F. can pre-establish winding turns number in advance. for example, you can pre-establish winding turns 200 , the machine will stop automatically when it gets to winding number 200)

G. Can restoration automatically, for example, you pre-establish turns number 0-200,  the machine will come back to zero when turns number reach 200, next time, when you start machine, it can wind from 0-200 turns again, no need to set turns number repeatedly.
